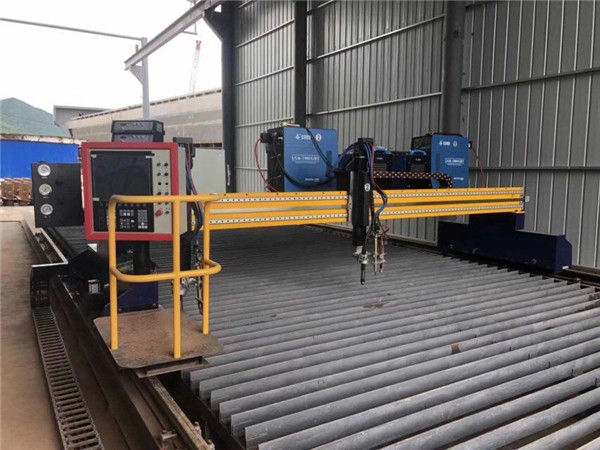

Peiriant Torri Plasma Fflam Gantry Maint Mawr Tsieina
Gwybodaeth Sylfaenol


Cutting Thickness: 1-50mm
Cyflymder Torri: 0-5000mm / mun
Voltage: AC220V
Gas: Oxygen
Working Material: Iron, Steel, Aluminum Sheets, Galvanized Sheets
Working Thickness: 0.5-30mm or Customize
Power: 8.5kw
Input Voltage: 380V 50Hz
Modd Gweithio: Streic Arc Heb Gyffyrddiad
Transmit Way: Taiwan Imported Ball Screw
Rail Guide: Precision Work Round
Optional Power Source: America Hypertherm and Ame
Z Axis Travel: 0-70mm
Itam: CNC Plasma Metal Cutting Machine



Disgrifiad o'r Cynnyrch


It is a kind of CNC cutting equipment with high efficiency and high precision, and can reduce labor intensity.
This machine uses gantry style, and has plasma or flame cutting style. It is easy to maintain and to operate, and it is reliable.
It has compact and rational construction, and the price is reasonable. It is more suitable for mediumsized and small enterprises to buy and use.



Main configuration and function introduction


# Strong drag chain--Traction and protection, smart high intensity, ametabolic rigidity, easy installation, use and reliable, easy yo tear open outfit.
# To protect the cable also make machine overall looks more beautiful
# Double heads--plasma cutter head can cut less than 40mm thickness( depends on power supply's current),
flame cutter head can cut 200mm thickness, can perfect meet your cutting demands
# Limit switch---Use it to control the workpiece movement or automatic feed, to avoid collision accident
# 24KGS guide rail--more stable
# Starfire cutting system and HYD auto arc voltage THC ---
The numerical control system with high disposes, the automatic striking arc, the performance is stable,Automatic height adjust system
---can according to your material planeness, cutting head can automatically stable, and fast adjust.



Manyleb Technegol


NAEitemspecification
1ModelFMP2030
2Horizontal track space3m
3Lled torri effeithiol2m
4Longitudinal track space4m
5Hyd torri effeithiol3m
6Cyflymder torri20-25m/min
7Torri manwl gywirdeb0.05mm
8Torri trwch0-40mm--plasma cutter head
200mm--flame cutter head
9System dorriStarfire cutting system (English)
10Arc height controlArc torch voltage height control
11Table structureWhole iron body, thick steel
12ModurJapan YASKAWA servo motor--3 sets
13Planet reducerJapan SHIMPO
14Motor power750w
15Ffordd drosglwyddoHigh precision rack gear
16Rheilffordd dywysAll axis use HIWIN square rail
17Solenoid valveItaly CEME
18Cyflenwad pŵerHypertherm MAXPRO200A
19Drawing softwareCAD
20Meddalwedd nythuAustralia FASTCAM software
21Output wayArtcam, type3
22LCD display dimension10.4 inches
23Modd gyrruModd gyrru
24Dyfais rheoleiddio uchderArc voltage height and Electric adjustable high
25Pwysedd nwyMax. 0.1 Mpa
26Oxygen pressureMax. 0.7 Mpa
27Other partsOne set plasma nozzle sent for free



Cais


They are widely used in ship, car, boiler pressure vessel, steel structure, plane, engineering machinery and other fields.
They use flame cutting to cut carbon steel, use plasma to cut stainless steel, aluminum, copper and other metal plates. They are especially fit for irregular drawing batch cutting.
