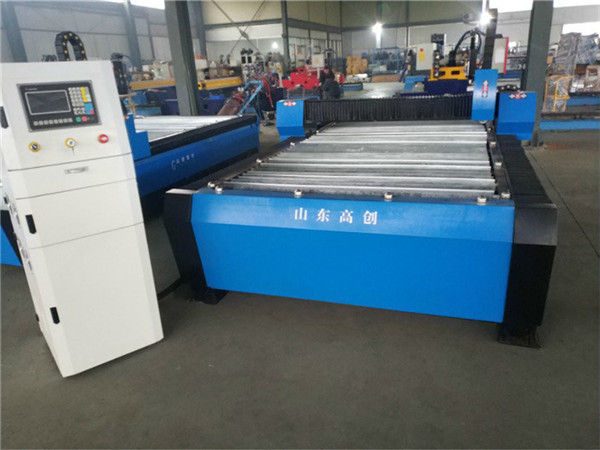

Proffesiwn CE Jinan 1325 Peiriant Torri Plasma CNC Bach
Gwybodaeth Sylfaenol


Wedi'i addasu: Wedi'i addasu
Cyflwr: Newydd
Color: Customized
Ardal Weithio: 1300 * 2500mm
Idling Speed: 15.000mm/Min
Working Speed: 10.000mm/Min
Precision: 0.07mm
Positioning Accuracy: 0.02mm
Machine Structure: Channel Steel Lathe Bed,Serrated Table

Disgrifiad o'r Cynnyrch


Product Overview
Plasma series is mainly applied to non-insulating material cutting,According to material thickness,power source of different current are correspondent choices to best fit precision request.

Nodweddion
1.Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2.Indline design under table surface makes finshed parts and scrap slide down to both side along,convenient and safe for operator.
3.DSP-hand-held control system dedicated for plasma machine,supports file reading from U disk or downloading from computer,providing high independence and great convenience duringoperation.
4.Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5.High sensitivity THC(Torch Height Controller)is optional for auto adjustment to cutting distance and cutting precison.
6. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option: Square rail)
7. Excellent cutting 3D illuminated letters for advertising and channel letters on metal surface board.
8. Arc voltage height controller
9. Small cutting gap, no residua.
10. Plasma Cutter working together with other advertising machines, such as CNC Router etc, improving working efficiency
11. Superior plasma power, Taiwan linesr rail, ensure vertical section, more percision.
12. US. Haibao power and domestic Huanyuan power
13. Drive system uses a system of Beijing Stuart

Technical Specification


ModelQL-1325 peiriant torri plasma
Maint gweithio1300x2500mm
Repeat positioning accuracy± 0.05mm
Cyflymder teithio0-24000rpm / mun
Cyflymder torri100-8000mm/min
Foltedd gweithioAC380 / 50HZ
Model trosglwyddoGear rack drive
System drosglwyddohigh-precision, zero clearance increased linear guide + rack
System dorriBeijing Stuart cutting system (English)
GyrrwrRay plug drives 860
(Sino-us joint venture large drives
Cyflenwad pŵer plasmaImported US Haibao or Domestic Huayuan
Torri trwch6-25mm
Cutting typePlasma/oxy-acetylene or propane
Foltedd mewnbwn3 phase, 220v/380v±10%
Mode of file transferRhyngwyneb USB
Cyflenwad pŵer65A US Haibao power supply
Guide wayRheilffordd sgwâr wedi'i fewnforio
Bwrdd bwrddGwelodd llafn dur mesa dannedd
Straight line positioning precision± 0.2mm / 10m
Straight line repeat precision±0.3mm/10m
Environmental temperature-5~45°C
Lleithder<90% No concreting
